.NET compilation process explained (C#)
How C# source becomes running code: the compiler emits MSIL into a managed module, Windows loads the CLR through MSCorEE.dll, and the JIT compiles each method to native code the first time it is called.
Originally published on dev.to
The CLR, you heard about it but you're not quite sure what it does or how it does certain things? JIT compiler seems familiar but where does it fit in the execution process? Keep reading and you can find out.

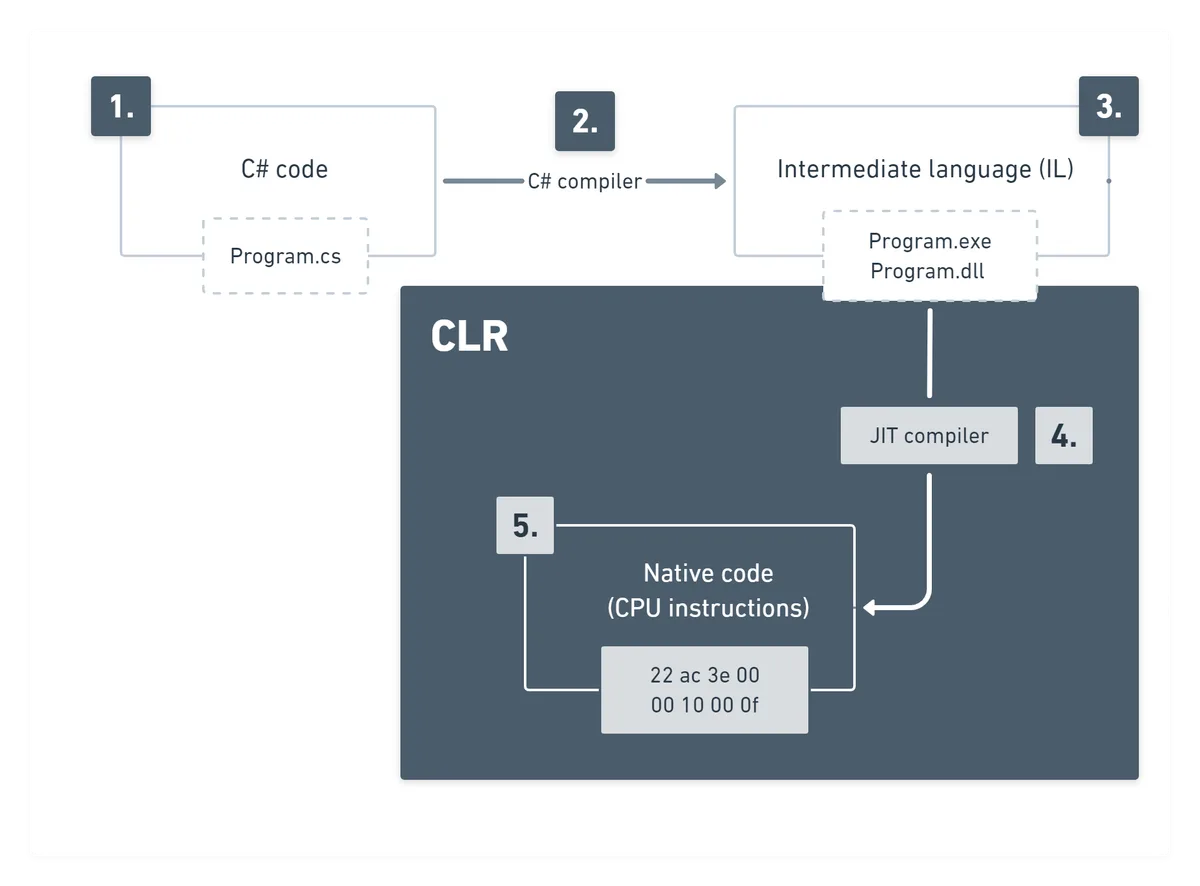

Overview of the execution process
- 01SourceA developer writes C# code.
- 02CompilerC# compiler checks the syntax and analyzes the source code.
- 03MSILMicrosoft intermediate language (MSIL) is generated as a result (EXE or DLL).
- 04RuntimeCLR gets initialized inside of a process and runs entry point method (
Main). - 05Native codeMSIL gets converted to native code by the JIT compiler.
CLR
Common language runtime (CLR or just runtime) is an environment that runs the code and provides services that make the development process easier. Sure, yet another definition that is not quite clear. Let's define it using an example:
You write code, compile it, and the next step in the process is the responsibility of CLR — it compiles MSIL (DLL or EXE) and creates an environment in which your code can be executed.
The runtime also provides the following benefits:
- Memory management
- Security boundaries
- Type safety
- Exception handling
- Garbage collection
- Performance improvements
You can develop your code in any programming language you desire as long as the compiler (e.g. C++/CLI, C#, Visual Basic, F#) you use to compile your code targets the runtime.
When working with .NET you'll often encounter the term managed code, which is code whose execution is managed by a runtime. Runtime is in charge of taking the managed code, compiling it into native code, and then executing it.
Compiling source code
When compiling to managed code, the compiler translates your source code into Microsoft intermediate language (MSIL), which is a CPU-independent set of instructions that can be efficiently converted to native code. Regardless of which compiler you use, the result is a managed module which is a standard 32-bit Windows portable executable (PE32) file, or a standard 64-bit Windows portable executable (PE32+) file that requires runtime to execute.
What is inside of managed module?
In addition to emitting MSIL, a compiler targeting the CLR is required to emit full metadata into every managed module. In brief, metadata is a set of data tables that describe what is defined in the module, such as types and their members, then what the managed module references, such as imported types and their members, etc.
Metadata is always embedded in the same EXE/DLL as the code (MSIL), making it impossible to separate the two.

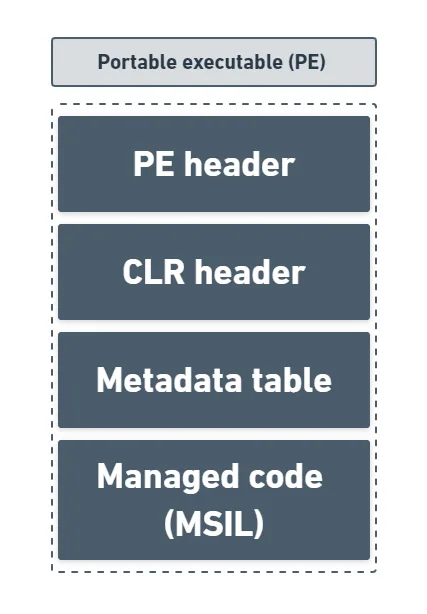

- PE header — if the header uses the PE32 format, the file can run on a 32-bit or 64-bit version of Windows. If the header uses the PE32+ format, the file requires a 64-bit version of Windows to run. This header also indicates the type of file: GUI, CUI, or DLL, and contains a timestamp indicating when the file was built.
- CLR header — includes the version of the CLR required, entry point method (
Mainmethod), location/size of the module's metadata, resources, strong name, flags, etc. - Metadata table — describes the types in your code, including the definition of each type, the signatures of each type's members, the members that your code references, and other data that the runtime uses at execution time.
- Managed code (MSIL) — code the compiler produced as it compiled the source code.
Loading CLR
When running an executable file, Windows examines this EXE file's header to determine whether to create a 32-bit or 64-bit process. Once created, Windows additionally checks the CPU architecture information embedded inside the header and accordingly loads MSCorEE.dll into the process's address space.
Process's primary thread calls a method inside MSCorEE.dll which initializes CLR, loads the EXE assembly, and calls its entry point method (Main). At that point, the managed application is up and running.
JIT and execution
JIT (just-in-time) compilation converts MSIL to native code on demand at application run time when the contents of an assembly are loaded and executed. Because the MSIL is being compiled “just in time”, this component of the CLR is frequently referred to as a JITter or a JIT compiler.
JIT compilation takes into account the possibility that some code might never be called during execution. Instead of using time and memory to convert all the MSIL in a PE file to native code, it converts the MSIL as needed during execution and stores the resulting native code in memory so that it is accessible for subsequent calls in the context of that process.
Execution example

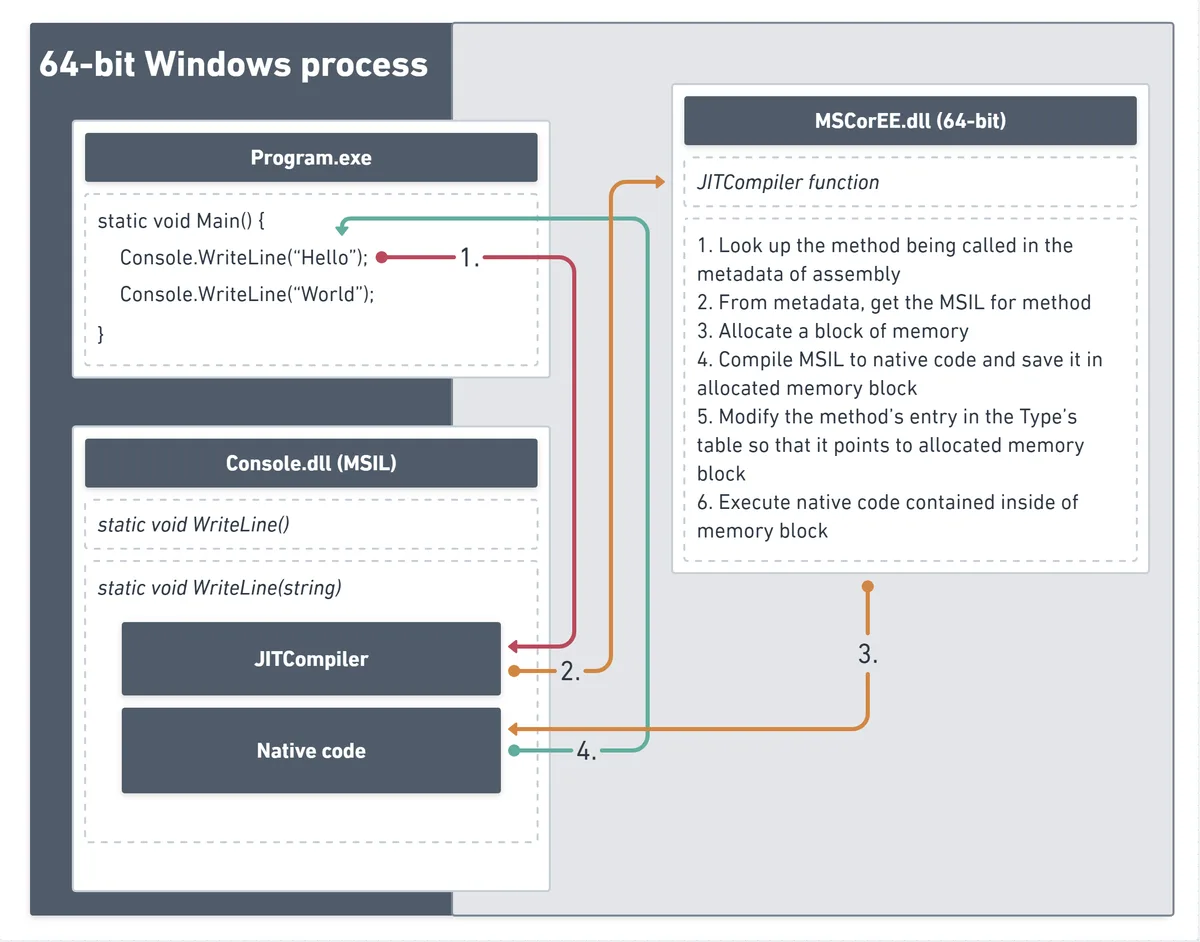

Once the Main method of Program.exe is called, and WriteLine is set to be executed next, the JITCompiler function searches assembly's (Console.dll) metadata for the called method's (WriteLine) MSIL. JITCompiler next verifies and compiles the MSIL into native code and saves it in a dynamically allocated block of memory.
Subsequent calls to the JIT-compiled method go directly to the native code.
Then, JIT replaces the reference of the called method (WriteLine) with an address of the block in memory containing the native code it previously compiled. Finally, the JIT jumps to the code (this code is the actual implementation of the WriteLine(string) method) in the memory block, executes it and returns to Main from where it continues execution as normal. The second time WriteLine is executed, code for the WriteLine method has already been verified and compiled, meaning the call goes directly to the block of memory where native code is stored.
Verification
While compiling MSIL into native code, the CLR performs a process called verification which ensures that everything the code does is safe. For example, verification checks that every method is called with the correct number of parameters, that each parameter passed is of the correct type, that every method's return value is used properly, that every method has a return statement, etc.
Final words
I hope this summarized article helped you to at least get an overview of the CLR and .NET compilation process in general. Below you can find additional resources if you want to dig deeper into terms that were mentioned but did not get enough attention in this article.
Credits and resources
JIT converts MSIL to native code on demand at application run time.
